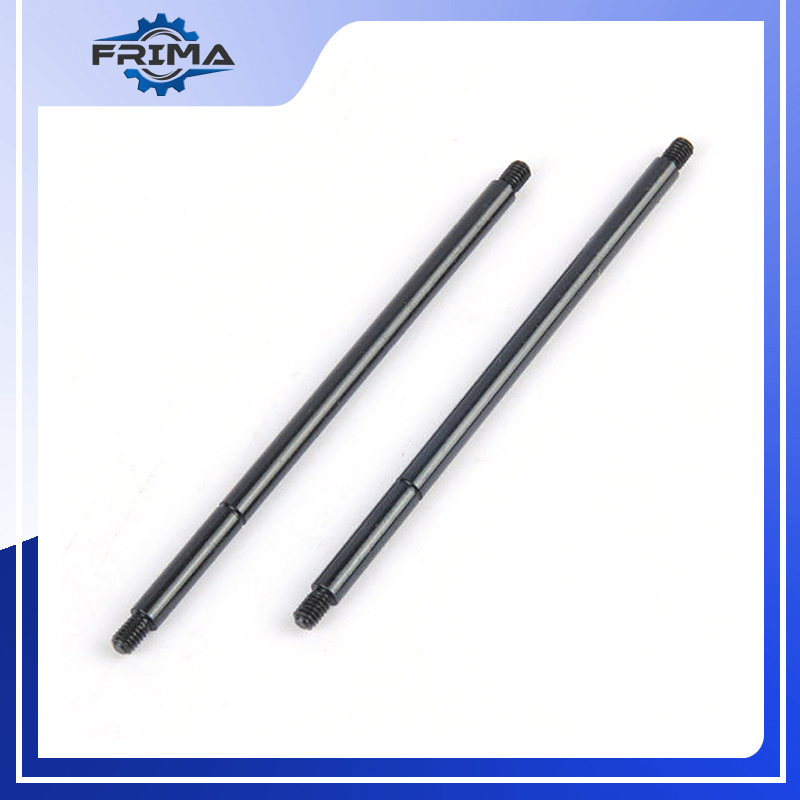

Carbon Steel Machining Shaft

Carbon steel machining shaft includes the material of AISI 1018, AISI 2020, C20, C35, C45, Q235, 42CrMo, etc

Inquiry Now

Overview

Carbon Steel Machining Shaft

1. All parts produced according to your CAD and 3D drawings or sample. Please send the blueprint or drawing artwork first, and we will offer our quotation to you ASAP.

2. Materials: Copper, Brass, Phosphor bronze, Beryllium Copper, Aluminum, Stainless steel, Carbon steel, and Iron.

3. The surface finish of the Precision Carbon steel Machining shaft includes: Electro-polishing, Electroless nickel plating, Silver plating, Golden plating, Zinc plating, TIN plating, Chrome plating, Bead Blasting, Phosphating, Turning, Heat treatment, Carburization, Case hardening, Sand blasting, Passivate, etc.

4. Testing facility: Coordinate measuring machine, projector, roughness tester, hardness tester, and concentricity tester. Height tester,

5. Part size: Diameter from 0.5mm to 150mm

6. Tolerance: +/-0.01mm, Or as your requirement

7. Lead time: 5-25 days after the confirmation of the sample.

Precision Carbon steel Machining shaft
 Standard  DIN2391, EN10305, JIS G3445, ASTM A519, GB/T 8713…
 Material AISI 1018,AISI 2020,C20,C35,C45,Q235,42CRMO
 Heat treatment  BKS
 Specification  Outer diameter(mm)  Inner diameter(mm)
 50-300mm  40-250
 I.D Tolerance  H8-H9
 Length  200-600m (Customers usually choose the 300~500m)
 Straightness  1/1000
 ID roughness  RA 0.4micron(max)
 Technology  Honed & SRB(SKIVED AND ROLLER BURNISHED )
 Scope  Honed tube for hydraulic cylinder, swivel crane, injection machine, and

construction machine application

Show All

Carbon steel machining shaft —Manufacturing process description:

1. Hydraulic shear cutting

2. CNC machining + additional broaching and milling operations

3. Induction hardening at a range of different frequencies and powers

4. Rotary straightening

5. Proportionally servo-controlled CNC grinding

6. Leading-edge technologies for hard chromium,

7. Dehydrogenation and tempering

8. Wet polish and super finish polish with 100% surface condition control

9. Export Packaging

Carbon steel machining shaft—Quality Inspection process:

We build a high-standard quality control system in accordance with the quality control standards of ISO9001 and IATF16949 and strive for excellence in management technology. The passing of TUV’s quality control system certification, a well-known international certification body, has promoted a comprehensive upgrade of the quality management system.

At the same time, we have also obtained ISO14001 environmental management system certification, actively fulfilling our social responsibilities and promoting the sustainable development of society.

By adhering to the corporate culture of “customer satisfaction, employee satisfaction, and social satisfaction”, we have been pioneering and enterprising, seeking a win-win situation and growing together.

In the future, we will take R&D as the driving force, be customer demand-oriented, innovate the level of technology, improve manufacturing technology, and become an excellent key supplier in home appliances, medical equipment, automobiles, and micro-motor parts.
