CNC Precision Machining Automotive Parts
At FRIMA, we understand CNC precision machining automotive parts as the precise removal of material from blanks made of metal, plastic, or composite materials using computer-controlled machine tools. These parts ultimately serve the automotive, aerospace, and industrial equipment industries.
The choice of materials determines the performance of the parts. Our engineers will recommend the most suitable material solutions based on the specific application of the parts, ensuring the optimal balance between strength, durability, and cost.
The choice of materials determines the performance of the parts. Our engineers will recommend the most suitable material solutions based on the specific application of the parts, ensuring the optimal balance between strength, durability, and cost.
We have been supplying the automotive industry with a wide range of precision-machined parts for many years, from transmission systems to engine components, accumulating extensive machining experience. Feel free to send us your drawings; the FRIMA team will provide you with professional process advice.
What specification FRIMA can offer?
1. Radii
Turned outside corners will typically include a 0.005 in. chamfer.
Minimum hole size:
● Minimum on-axis and axial: 0.04 in. (1mm)
● Minimum radial: 0.08 in. (0.5mm), 0.04 in (0.5mm) for aluminum and brass
2. Size
● UNC & UNF threads from #2 up to 0.5 in.
● Threaded Holes
● Metric threads M1.2 and above.
3. Grooves:
● Minimum OD groove width: 0.047 in. (1.2mm)
● Minimum OD groove width for aluminum and brass:0.019 in (0.5mm)
● Maximum OD groove depth: 0.95 in. (24.1mm)—varies with a groove width
Turned outside corners will typically include a 0.005 in. chamfer.
Minimum hole size:
● Minimum on-axis and axial: 0.04 in. (1mm)
● Minimum radial: 0.08 in. (0.5mm), 0.04 in (0.5mm) for aluminum and brass
2. Size
● UNC & UNF threads from #2 up to 0.5 in.
● Threaded Holes
● Metric threads M1.2 and above.
3. Grooves:
● Minimum OD groove width: 0.047 in. (1.2mm)
● Minimum OD groove width for aluminum and brass:0.019 in (0.5mm)
● Maximum OD groove depth: 0.95 in. (24.1mm)—varies with a groove width
| Linear dimension | +/- 0.025mm +/- 0.001 inches |
| Hole diameter (not reamed) | +/- 0.025mm +/- 0.001 inches |
| Shaft diameter | +/- 0.025mm +/- 0.001 inches |
| Part Dimension limit | 950*550*480mm 37.0 * 21.5 * 18.5 inches |
Q&A
1. Q: Are you a manufacture or a Trade Company ?
A: We are a manufacturer with two production plants and one warehouse in Ningbo, Zhejiang, China.
2. Q:What's the order process?
a) Engineering Meeting
b) Material Inspection
c) Precision Machining
d) Production Transfer Card
e) 100% Inspection
f) Package & Shipment
3. Q: Can you provide 3D design?
A: Yes, we can provide 3D parts/tooling design as the same.
4. Q: What is CNC Machining?
A: CNC Machining is a process used in the manufacturing sector that involves the use of computers to control machine tools. Tools that can be controlled in this manner include lathes, mills, routers and grinders. The CNC in CNC Machining stands for Computer Numerical Control.

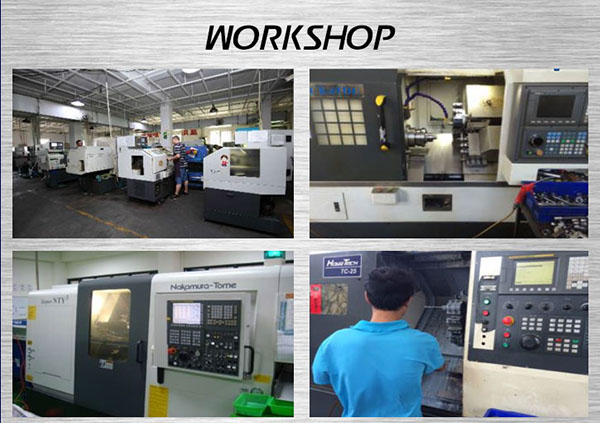

5. Q: What kind of machines do you have?
A: Our main machines include CNC Turning Machine 40 sets, Auto Lathing Machine 20 sets, Swiss Type Auto Lathing Machine 20 sets, CNC Grinding Machine 5 sets, CNC Turn-Milling Combined machine 10 sets, Laser Cutting Machine 4 sets, Punch Machine 20 sets, Bending Machine 2 sets, Ultrasonic Cleaning Machine 1 set.
A: We are a manufacturer with two production plants and one warehouse in Ningbo, Zhejiang, China.
2. Q:What's the order process?
a) Engineering Meeting
b) Material Inspection
c) Precision Machining
d) Production Transfer Card
e) 100% Inspection
f) Package & Shipment
3. Q: Can you provide 3D design?
A: Yes, we can provide 3D parts/tooling design as the same.
4. Q: What is CNC Machining?
A: CNC Machining is a process used in the manufacturing sector that involves the use of computers to control machine tools. Tools that can be controlled in this manner include lathes, mills, routers and grinders. The CNC in CNC Machining stands for Computer Numerical Control.
5. Q: What kind of machines do you have?
A: Our main machines include CNC Turning Machine 40 sets, Auto Lathing Machine 20 sets, Swiss Type Auto Lathing Machine 20 sets, CNC Grinding Machine 5 sets, CNC Turn-Milling Combined machine 10 sets, Laser Cutting Machine 4 sets, Punch Machine 20 sets, Bending Machine 2 sets, Ultrasonic Cleaning Machine 1 set.
