Custom Precision Automotive motor shafts

FRIMA, a Chinese custom precision automotive motor shafts manufacturer and supplier. We maintain strict inspections from production to shipment, and the price is reasonable. Our state-of-the-art equipment and experienced team allow us to provide our customers with high-quality parts and components that meet their exact specifications. You can contact us anytime with your drawings.

product details

A custom precision automotive motor shaft is a tailor-made cylindrical power transmission component exclusively engineered for automotive powertrain, drivetrain, steering, engine, and chassis systems, fully fabricated via high-end CNC precision machining to match unique OEM dimensional drawings, load specifications, and vehicle operating environments.

Unlike standard off-the-shelf round bar shafts, FRIMA's custom precision automotive motor shafts eliminate problems such as mismatches with common parts, premature fatigue failure, rotational vibration, and torque loss. As a core rotating load-bearing component in the vehicle assembly, it undertakes continuous power transmission, torque transmission, motion conversion, and structural support under high-speed rotation, temperature changes, heavy impacts, and long-term cyclic operating conditions. From geometric details, stepped diameters, spline structures, and thread profiles to bearing mating areas, every detail is customized according to the customer's technical drawings, fully complying with global automotive industry safety and durability standards.

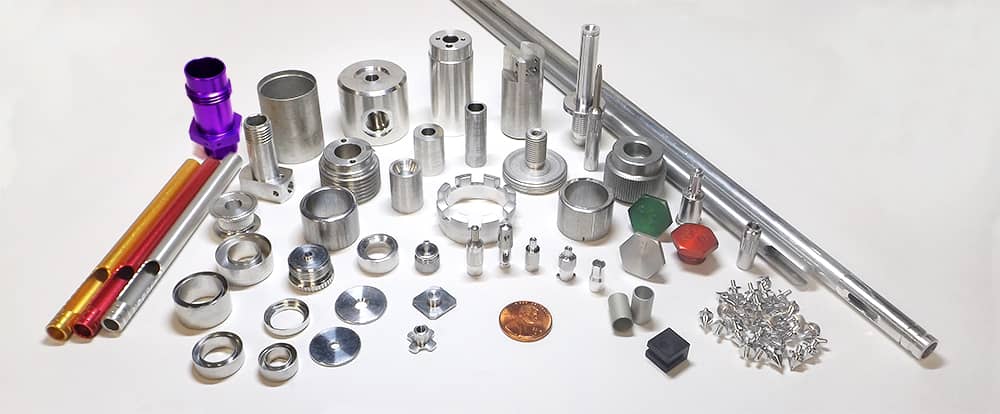

aluminum material

Specifications

Dimensional Tolerance	±0.005mm, customizable according to drawings
Radial runout	≤0.003mm, low runout ensures smooth high-speed rotation and reduces component wear
Surface roughness Ra	Adjustable from 0.8μm to 3.2μm; precision-ground areas achieve Ra values of 0.8μm and below, achieving perfect bearing fit
Size range	Diameter customizable, from 2mm for miniature shafts to 120mm for heavy-duty shafts; length from 15mm to 1200mm
Straightness accuracy	≤0.02mm/m, effectively preventing shaft deflection under continuous load
Heat treatment hardness	Adjustable from HRC 28 to 58, customized according to wear and load conditions

Application

Our custom precision automotive shafts serve across all critical subsystems of internal combustion engine vehicles, hybrid cars, and new energy electric vehicles, covering mainstream automotive component scenarios.

● Engine System: Camshafts, auxiliary drive shafts, valve train intermediate shafts, crankshaft extension shafts, and engine output connecting shafts, adapting to high-temperature combustion chamber peripheral operation.

● Transmission & Drivetrain: Transmission input/output shafts, gearbox step shafts, differential drive shafts, splined transmission shafts, and EV reducer drive shafts, undertaking high torque transmission with minimal energy loss.

● Steering & Chassis: Steering column shafts, steering intermediate shafts, suspension linkage shafts, and stabilizer connecting shafts, ensuring stable directional control and low running vibration.

● EV Specialized Shafts: Motor rotor shafts, reducer input shafts, lightweight drive shafts for electric vehicle powertrains, optimized for low inertia, high rotational stability, and compact assembly space of EV platforms.

● Auxiliary Automotive Parts: Turbocharger linkage shafts, pump drive shafts, and actuator transmission shafts for automotive cooling, braking, and intelligent control modules.

aluminum application

Selectable Material Library for Automotive Service Conditions

We match targeted raw materials according to shaft load, temperature, wear resistance, corrosion demand, and vehicle weight-saving requirements, all materials meet automotive-grade metallurgical standards:
● High-strength Alloy Steel: 42CrMo4, 34CrNiMo6, 20CrMnTi — primary choice for heavy torque transmission shafts, with excellent fatigue resistance, impact resistance, and high-temperature stability.
● Carbon Structural Steel: 45# steel, 40Cr — cost-effective option for general automotive auxiliary shafts with medium load demand.
● Aluminum Alloy: 6061, 7075 — lightweight low-inertia material for EV motor shafts and steering system components, reducing overall vehicle weight and energy consumption.

● Stainless Steel: 304, 316L — anti-corrosion shafts for humid automotive environments, braking system peripherals, and special vehicle configurations.

● Special Bearing Steel: For high-wear bearing fit zones, ensuring long-term friction stability and dimensional non-deformation.

FRIMA Machining Process

1. Material cutting, blank forming, and stress relief pretreatment to eliminate residual stress in the raw metal material.

2. Full contour turning of stepped diameters, cylindrical surfaces, shoulder transitions, and chamfers to achieve preliminary overall contour forming.

3. Custom machining of keyways, planar positions, external splines, internal splines, thread structures, and special groove features.

4. Precision grinding of bearing mating surfaces, sealing positions, and high-precision diameter areas to optimize surface roughness and radial runout control.

5. Induction hardening, tempering, carburizing, and stress stabilization treatment to improve surface hardness, wear resistance, and overall fatigue strength, while avoiding increased overall brittleness.

6. High-speed rotational dynamic balancing correction to suppress centrifugal vibration during high-speed vehicle operation and extend component lifespan.

7. Polishing, passivation, blackening, phosphating, and custom coating to resist the humid, oily, and corrosive working environment of the automotive industry.

FRIMA After-Sales Service

FRIMA highly values the after-sales service experience of its global customers and has established a comprehensive after-sales service system to provide professional and efficient support to every customer. For all custom precision automotive motor shafts within the warranty period, we will take full responsibility for any quality issues arising from processing, materials, or heat treatment.

We have a professional after-sales technical team that can respond to customer inquiries and complaints within 24 hours and provide technical guidance and solutions for product installation, use, and maintenance. Furthermore, we regularly follow up with customers to understand product usage, collect customer feedback, and continuously optimize product quality and customized services. Our commitment is to provide high-precision, high-durability custom automotive driveshafts and to accompany our customers' production and operations throughout the entire process with comprehensive after-sales service.

FRIMA Custom Case Studies

Case 1: EV Reducer Shaft Customization for European New Energy Automaker - The client needs a lightweight, high-precision drive shaft for their new energy passenger vehicle reducer, requiring low rotational inertia, radial runout ≤0.002mm, and weight reduction of 12%.

We selected 7075 aluminum alloy as the raw material, optimized the shaft structure through topology optimization, adopted multi-axis CNC machining and ultra-fine grinding process, and matched the special anti-corrosion coating. The final product not only meets the client's precision and weight requirements, but also has excellent stability under frequent start-stop conditions, and has been mass-produced and supplied for 3 years, with a product qualification rate of 99.8%.

Case 2: Heavy-Duty Truck Transmission Shaft Customization for North American Aftermarket - The client is an automotive aftermarket supplier in North America, needing a custom transmission shaft to replace the original product, which requires solving the problem of premature fatigue fracture of the original shaft under heavy load.

We selected 34CrNiMo6 high-strength alloy steel, optimized the heat treatment process (carburizing + tempering), increased the surface hardness to HRC 55-58, and strengthened the structural design of the shaft shoulder and spline. The customized shaft has passed the 1000-hour fatigue test, and its service life is 2.5 times that of the original product, which has been widely praised in the North American heavy-duty truck aftermarket.
