Centerless Grinding After CNC Turning: When Tolerance Demands Exceed Lathe Capability
TL;DR
CNC turning has real, hard capability ceilings — set by machine repeatability, tool wear, fixturing rigidity, and the part's length-to-diameter ratio. When a buyer's tolerance spec pushes past those ceilings, centerless grinding is typically the right next step: it tightens diameter tolerance to ±0.0025 mm or better, improves cylindricity and roundness, and pushes surface finish below Ra 0.4 µm. The right question is not "can the lathe hold it" but "is the part's geometry a fit for centerless, and is the volume high enough to absorb the additional cycle time." FRIMA sequences turning and grinding on precision machining services for parts where tolerance feasibility is the deciding factor in supplier selection.

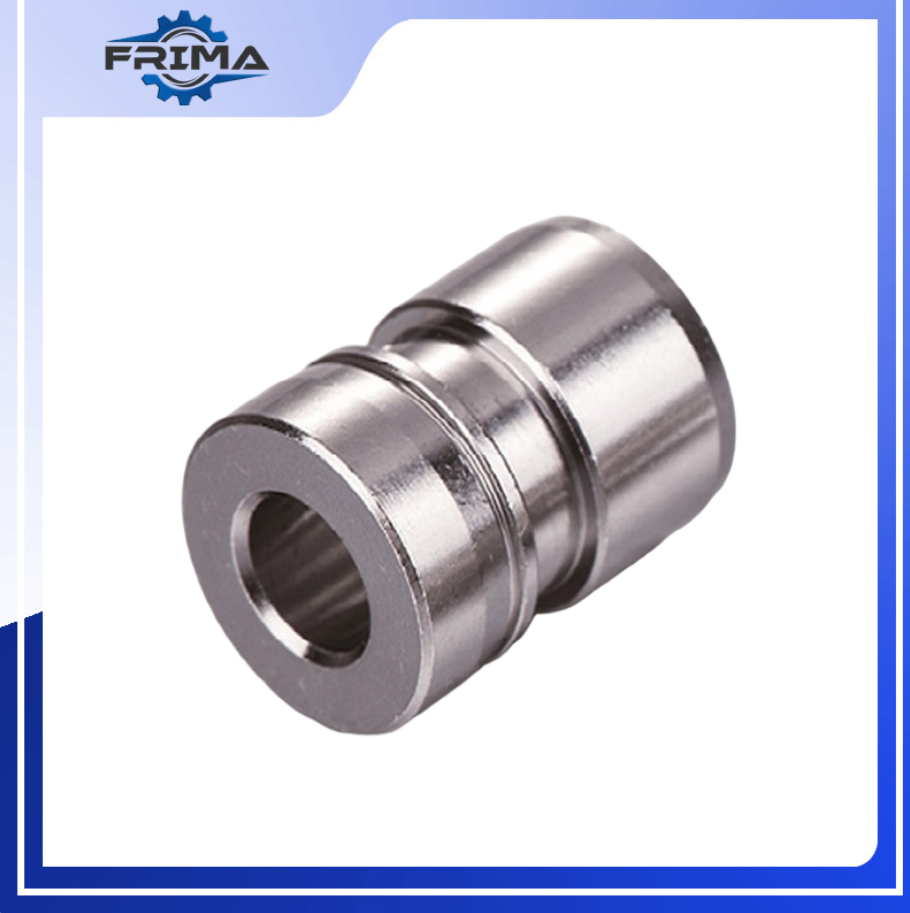

Why "tight tolerance" is no longer a CNC turning problem only
Buyers specifying precision turned components often default to CNC turning as the only manufacturing process in scope. That default works for tolerance specifications up to a point — typically ±0.025 mm on diameter, ±0.05 mm on length, and Ra 1.6 µm on surface finish — but it runs into hard limits when the part requires tighter specification.
The lathe has real capability ceilings. Machine repeatability, tool wear over a production run, fixturing rigidity, and the part's length-to-diameter ratio all add up. For a short, rigid shaft with generous tolerance, a modern CNC lathe can hit ±0.01 mm or better. For a long slender shaft or a part with multiple features, the achievable tolerance relaxes. The buyer's spec does not relax — it stays at ±0.005 mm or ±0.0025 mm regardless of whether the lathe can hold it.
When the spec exceeds the lathe's capability, the question is which secondary process to specify. Centerless grinding is one of several options — ID grinding, profile grinding, and superfinishing are others — and it is the right choice for a specific set of cylindrical geometries.
Lathe capability ceilings — what holding and rigidity actually limit
Industry-standard reference: CNC turning capability is typically quoted as ±0.01–0.025 mm on diameter for general-purpose work, with high-end lathes and stable work-holding pushing closer to ±0.005 mm on short, rigid parts. Beyond that, the practical limits come from a few specific sources.
The first source is tool wear over a production run. Even with a tool-change criterion tied to part count, the insert gradually wears and the diameter drifts. Compensating in the program is possible, but compensation has its own lag and its own variability across the batch.
The second source is fixturing rigidity. A long slender shaft held in a 3-jaw chuck flexes under cutting force, and the diameter at the free end is not the same as the diameter at the chuck end. Adding a steady rest helps but introduces its own alignment complexity.
The third source is length-to-diameter ratio. As the ratio increases past about 4:1, chatter becomes more likely and the achievable tolerance band widens. At 8:1 or 10:1, the turning process is typically not the right choice for any spec tighter than ±0.025 mm.
What is centerless grinding — and what it is not
Industry-standard reference: centerless grinding is a cylindrical grinding process where the workpiece is supported on a work-rest blade between two wheels — a grinding wheel and a regulating (or control) wheel. The workpiece is not held in centers or in a chuck; it is supported on the blade and rotated by the friction of the regulating wheel. There is no centering step required.
This setup is what gives centerless grinding its name. It is also what makes the process fast for high-volume production of small cylindrical parts — there is no centering cycle, and the workpiece can be fed through continuously (through-feed) or indexed in place (in-feed) for stepped features.
What centerless grinding is not: it is not a substitute for ID grinding, profile grinding, or any non-cylindrical feature. The process is best suited to simple cylindrical features — straight shafts, stepped shafts with cylindrical sections, and pin-style components. For parts with flanges, shoulders, eccentric profiles, or non-cylindrical features, the centerless setup cannot pass the part through, and other grinding processes take over.
When centerless grinding makes sense after turning
Industry-standard reference: centerless grinding is the right next step after CNC turning in a defined set of conditions. The part geometry must be a fit (simple cylindrical features, no shoulders or flanges in the ground section), the volume must justify the additional cycle time, and the tolerance or surface-finish requirement must exceed what the lathe can hold.
| Process dimension | Indicator — grinding is right step | Indicator — grinding is overkill | Indicator — grinding is wrong process |
|---|---|---|---|
| Geometry | Straight shaft / pin / stepped cylindrical | Short shaft already in turning spec | Flange, shoulder, eccentric profile |
| Tolerance / finish | ±0.0025 mm or Ra 0.4 µm required | ±0.01 mm or Ra 0.8 µm is enough | Non-cylindrical feature needs finishing |
| Volume / cycle | Volume absorbs 1–3 day grinding cycle | Prototype quantity, one-off tolerance push | Volume makes queue time dominant |
At FRIMA, the typical sequence for a tight-tolerance cylindrical part is turning to within grinding-stock allowance (typically 0.1–0.3 mm on diameter), then centerless grinding to the final spec. This sequence lets the lathe do what it is good at — high material-removal rate at moderate tolerance — and lets the grinder do what it is good at — tight tolerance at low material-removal rate. The part moves between processes without re-fixturing, which is part of why the cycle-time penalty is modest at production volume.
When centerless grinding is the wrong next step
Centerless grinding is not always the right answer. Three conditions typically rule it out.
The first is non-cylindrical geometry. If the tolerance-critical feature is not a simple cylinder, centerless cannot reach it. ID grinding, profile grinding, or a center-type cylindrical grinder with a fixture is usually the right alternative.
The second is prototype or low-volume production. The centerless setup has a wheel-dressing and setup cost that only amortizes at production volume. For prototype quantities, the right question is whether the tolerance can be held by a more careful turning process — slower feed, sharper tool, smaller depth-of-cut, possibly a finish pass with a wiper insert.
The third is material with grinding difficulty. Some materials — aluminum with high silicon content, certain titanium alloys, and some hardened tool steels — present wheel-loading or surface-burnishing problems in centerless grinding. For those materials, alternative grinding processes or a different secondary-finishing strategy may be a better fit.
Dimensional, geometric, and surface outcomes across the two-process sequence
Industry-standard reference: the dimensional, geometric, and surface-finish improvements from adding centerless grinding after turning are typically measurable and significant. The exact numbers depend on the part geometry and the supplier's process definition, but typical industry observations are summarised below.
| Outcome | CNC turning only | Turning + light grinding pass | Turning + production centerless grinding |
|---|---|---|---|
| Diameter tolerance | ±0.01–0.025 mm | ±0.005 mm | ±0.0025 mm or tighter |
| Roundness | 0.005–0.01 mm | 0.0025–0.005 mm | 0.001–0.0025 mm |
| Cylindricity | 0.01–0.02 mm | 0.005–0.01 mm | 0.0025–0.005 mm |
| Surface finish (Ra) | 0.8–1.6 µm | 0.4–0.8 µm | 0.2–0.4 µm |
The key observation is that the grinding pass is not only tightening the diameter — it is improving all four geometric dimensions simultaneously. For parts where the application is sensitive to roundness or cylindricity (dynamic sealing surfaces, bearing journals, hydraulic spool bores), the geometric improvement can matter more than the diameter tightening itself.
For FRIMA's CNC turned parts portfolio, the parts that go to grinding are typically those with tolerance specifications in the ±0.0025–0.005 mm band, surface-finish requirements below Ra 0.4 µm, or roundness/cylindricity requirements below 0.005 mm.
Material-specific behavior in the grinding pass
Industry-standard reference: different materials behave differently in the centerless grinding pass, and the wheel specification, coolant, and spark-out pass all change with the material.
For hardened steels (above ~HRC 50), aluminum-oxide wheels with standard coolant and a moderate spark-out pass are the typical process. For soft steels and stainless, ceramic or aluminum-oxide wheels with a sharper dress and a finer feed give the best surface finish.
For aluminum and copper, silicon-carbide wheels with lighter cuts avoid the wheel-loading problem that aluminum presents with standard aluminum-oxide wheels. The spark-out pass is critical to avoid part-end taper.
For titanium, the grinding pass needs sharp wheels and careful coolant selection to avoid surface burnishing. The as-grinding surface typically requires a light polishing pass if Ra 0.2 µm is required.
How FRIMA sequences turning and grinding for tight-tolerance parts
At FRIMA's Ningbo facility, the typical sequence for a tight-tolerance cylindrical part is turning first, centerless grinding second, with first-article inspection between the two processes. The turning operation leaves a controlled grinding-stock allowance (typically 0.1–0.3 mm on diameter), and the grinding operation removes that allowance while improving cylindricity, roundness, and surface finish.
The facility operates dual ISO 9001 and IATF 16949 certifications and an 8,000 sq ft machine shop with CNC turning, CNC milling, Swiss-type turning , and post-processing capabilities (heat treatment, surface treatment, assembly). The centerless grinding capability is in-house, which keeps the cycle-time penalty between the two processes small — typically 1–3 working days added to the part cycle at production volume.
For buyers specifying tight-tolerance cylindrical components, FRIMA's quality certificates and process-definition documentation cover the turning-and-grinding sequence in a single traceability chain. The supplier's first-article report documents the as-turned and as-ground measurements, the wheel specification, the coolant specification, and the inspection plan for production runs.
Submit a tolerance feasibility review
If you are specifying a cylindrical component with tolerance requirements tighter than ±0.01 mm or surface-finish requirements below Ra 0.4 µm, the next step is a tolerance feasibility review. Submit your drawing and tolerance spec through the FRIMA contact page. The engineering team can return a feasibility assessment covering whether the part is a fit for centerless grinding, the achievable tolerance band, the expected cycle-time impact, and a sample-piece program option for prototype quantities.
Submit a tolerance feasibility review
Submit your drawing and tolerance spec via the FRIMA contact page for a centerless grinding feasibility assessment.
FAQ
Can centerless grinding achieve tighter tolerance than CNC turning?
Industry-standard reference: yes — centerless grinding can typically achieve diameter tolerance of ±0.0025 mm or tighter, compared with typical CNC turning limits of ±0.01–0.025 mm. The exact grinding tolerance depends on the part geometry, the material, the wheel grade, and the workpiece rigidity in the through-feed or in-feed setup. For parts where turning can no longer hold the spec, grinding is the right next step — but it is not a universal upgrade.
What tolerance is realistic for centerless grinding after turning?
Industry-standard reference: diameter tolerance of ±0.0025 to ±0.005 mm is typical for production centerless grinding, with surface finish at Ra 0.2–0.4 µm achievable on hardened and soft steel alike. Roundness and cylindricity improve substantially relative to the as-turned condition. These are typical industry observations, not FRIMA-specific measured values — the achievable spec depends on the part geometry and the supplier's process definition.
Is centerless grinding only for cylindrical parts?
Industry-standard reference: centerless grinding is best suited to simple cylindrical features — straight shafts, stepped shafts with cylindrical sections, and pin-style components. It is not the right process for non-cylindrical features, eccentric profiles, or parts with flanges or shoulders that cannot pass through the grinding wheels. For those geometries, other grinding processes (ID grinding, profile grinding, or flute grinding on a center-type grinder) are usually specified.
What surface finish can centerless grinding achieve?
Industry-standard reference: centerless grinding typically achieves surface finish in the Ra 0.2–0.8 µm range for production parts, with finer finishes (Ra 0.1 µm or below) achievable on a second pass with a softer wheel and finer feed. The surface finish depends on the wheel specification, the workpiece material, the coolant, and the spark-out pass. For parts where the as-turned surface finish is not enough, grinding is the standard next step.
Do all metals respond the same way to centerless grinding?
Industry-standard reference: no — different materials respond differently to centerless grinding. Hardened steels (above ~HRC 50) grind well with aluminum-oxide wheels and standard coolant. Soft steels and stainless grind well with aluminum-oxide or ceramic wheels. Aluminum and copper are typically ground with silicon-carbide wheels and lighter passes to avoid wheel loading. Titanium requires sharp wheels and careful coolant selection to avoid surface burnishing.
How much does centerless grinding add to lead time?
Industry-standard reference: adding a centerless grinding step typically adds 1–3 working days to the part cycle time, depending on queue position, batch size, and whether in-house grinding is available. For tight-tolerance parts where grinding is part of the validated process chain, the lead-time penalty is built into the supplier's quoted cycle. For one-off or prototype quantities, the queue-time penalty can dominate, and the feasibility question becomes whether the tolerance can be held by turning alone.
