Live Tooling on CNC Lathes: When Milling Features Belong on a Turned Part

1What Live Tooling Actually Means on a CNC Lathe

A standard CNC lathe has one rotating element: the spindle that holds and rotates the workpiece. The cutting tools are stationary — they feed linearly into the rotating workpiece to remove material and form the cylindrical, conical, or threaded features of a turned part. The lathe has no native ability to rotate a cutting tool independently of the workpiece, which means it cannot mill a slot, drill a cross-hole, or cut a flat face.

Live tooling changes that. A live tool holder is a driven spindle mounted on the lathe's tool turret (or on a secondary slide), powered by a separate motor that rotates the cutting tool at a programmed RPM independent of the lathe spindle. With a live tool holder mounted, the lathe can perform milling, drilling, tapping, and slotting in the same setup as turning — the workpiece stays in the chuck while the cutting tool spins and moves along X, Y, and Z axes to produce milled features on the cylindrical surface, the end face, or both.

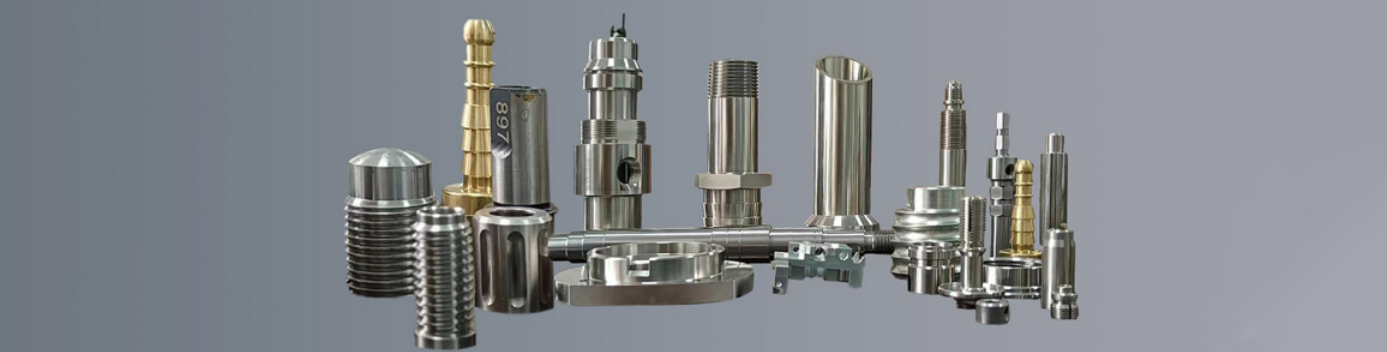

The practical effect is that a part with both turned and milled features — a shaft with a cross-hole, a flange with bolt holes, a coupling with slots, a hydraulic fitting with multiple drilled and milled ports — can be completed in one setup on a single machine, instead of being turned on one machine, transferred to a mill for the milled features, and re-clamped. The single-setup approach delivers tighter positional tolerances between turned and milled features (no second-clamping error), shorter cycle time (no transfer step), and lower handling damage risk (no second handling operation).

The trade-off is that a live-tooled lathe is more expensive than a standard lathe, the cycle time per part can be longer if the milling operation is extensive (because the milling RPM and feed rates are typically lower on a lathe than on a dedicated mill), and the live tool holder capacity is limited (a lathe turret typically holds 8-12 tools, of which 4-6 might be live tool holders; the rest are static turning tools).

2The 5 Questions That Decide Whether to Mill on the Lathe

Whether to specify live tooling on a CNC lathe for your part is a decision driven by five questions. Answer them in order, and the answer at the end tells you whether live tooling is the right specification for your RFQ.

Question 1: Does the part have milled features that must align with turned features? This is the first filter. If the answer is no — the part is purely turned, or the milled features are on a separate face that does not need to align with the turned geometry — then live tooling is not needed, and the part can be turned on a standard lathe and milled on a separate machine. If the answer is yes — a cross-hole that must be perpendicular to a turned diameter within ±0.05mm, a slot that must align with a turned groove, a flat face that must sit at a specific angular position around a turned cylinder — then live tooling is the right starting point.

Question 2: Can the part be held in the lathe chuck while the milling features are produced? Some parts have milled features at the end of a long, slender shaft where the chuck would interfere with the tool. Other parts have milled features on a thin wall that would deflect under the milling forces. For these parts, the milling features may need to be produced on a separate machining center with a different workholding solution. Live tooling requires the part to remain rigid in the lathe chuck throughout the milling operation.

Question 3: What is the production volume? Live tooling has a longer setup time than a standard lathe (the live tool holders must be calibrated, the milling tools presetter, the milling programs written and tested). For prototype or low-volume production (under 50 units), the setup-time cost can exceed the cycle-time savings, and a job shop with separate lathe and mill may be more cost-effective. For production volumes above 200-500 units, the setup-time cost amortizes over enough parts that the per-part cycle-time savings justify the cell setup.

Question 4: What percentage of total cycle time is the milling operation? If the milling operation is less than 30-40% of the total cycle time, live tooling delivers a net cycle time reduction. If the milling operation is more than 50% of the total cycle time, the milling portion is better suited to a dedicated machining center, and the part should be split into a turning op + milling op sequence. A part that is 80% milling and 20% turning should not be live-tooled; a part that is 30% milling and 70% turning is a strong live-tooling candidate.

Question 5: Are the milled features within the live tool holder's reach and the machine's axis capability? A standard 2-axis live tool holder can produce radial features (cross-holes, slots, flats) on the cylindrical surface. A 4-axis live tool holder (with a Y-axis or B-axis) can produce off-center features and complex contours. Some milled features require tool orientations that are not available on any live tool holder — for example, deep internal milling on a small bore, or features that require the tool to reach around a shoulder. For these, a separate machining center is the only option.

The decision matrix at the end of this article summarizes the answers to these five questions and the resulting live-tooling recommendation. For buyers evaluating an RFQ for a turned-and-milled part, the answer is typically clear: cross-holes, slots, flats, and pockets are live-tooling candidates; complex 3D contours and deep internal features are not.

3Geometry Signals: Holes, Slots, and Features That Cannot Be Turned

Turned parts come off the lathe as cylinders, cones, threads, and grooves — features that are all rotationally symmetric around the spindle axis. Any feature that breaks that rotational symmetry is a candidate for live tooling or a separate milling operation.

The most common live-tooled features, in order of frequency in production:

Cross-drilled holes (radial holes). A hole drilled perpendicular to the part axis — through the cylinder wall, entering on one side and exiting on the other (or stopping at a specified depth). Cross-drilled holes are extremely common on hydraulic fittings, sensor bodies, and fluid ports. The position of the cross-hole relative to the turned features (a groove, a flange, a thread) must be controlled to ±0.05mm or tighter, which is why live tooling is preferred over a separate drill press operation.

Axial holes (holes along the part axis). A hole drilled or bored into the end face of the part, going in along the spindle axis. On a standard lathe, this is done with a stationary drill held in the tailstock or a cross-slide. With live tooling, the same operation can be done while the part is held in the chuck, without a tailstock. For long parts, axial drilling with live tooling can be combined with cross-drilling in the same setup.

Slots and flat faces. A slot cut into the cylindrical surface — for a wrench flat, a screwdriver slot, a keyway — or a flat face machined on one side of a cylinder to create a D-shape or hex feature. Slots are produced with a milling cutter held in a live tool holder; the part rotates slowly under the stationary cutter to produce the slot at the desired location and depth.

Pockets and recesses. A pocket milled into the end face or the cylindrical surface for clearance, weight reduction, or mating with another part. Pockets are typically produced with a smaller-diameter end mill held in a live tool holder, with multiple passes at increasing depths to achieve the final pocket geometry.

Hex or square features. A hex head, square head, or other polygonal feature for wrench engagement. These are produced by milling flats around the cylindrical surface — typically six flats for a hex, four flats for a square. The flats must be evenly spaced around the circumference, which requires precise angular positioning of the lathe spindle in coordination with the live tool feed.

Off-center holes and angled features. A hole drilled at an angle to the part axis, not perpendicular to the cylinder. These require a live tool holder with a Y-axis or B-axis (4-axis capability) to orient the tool at the specified angle. Off-center holes are common on fittings where the fluid port must be at a specific orientation relative to the mounting flange.

Thread milling. Internal or external threads produced by milling a thread profile with a single-point cutter, rather than turning the thread with a chasing tool. Thread milling is preferred over thread turning for large-diameter threads (above M30 or 1 inch), for threads in hard materials (above 32 HRC), and for threads that must align with another feature (a thread that must start at a specific angular position). Thread milling with live tooling is faster than thread turning for these applications.

4Material and Tolerance Considerations for Live Tool Milling

Material affects the live tooling parameters more than it affects standard lathe turning. The milling operation involves interrupted cutting (the cutter enters and exits the material as it rotates around the cylindrical surface) and varying chip thickness (the chip is thicker when the cutter is at the deepest point of cut and thinner at the edges). Both effects create cutting forces that the live tool holder, the tool, and the workpiece must withstand without chatter or breakage.

Aluminum (6061, 7075, 2024). Aluminum is the most live-tool-friendly material. It can be milled at high spindle speeds (8,000-12,000 RPM) with high feed rates and produces small, easily-evacuated chips. The risk is tool chatter if the live tool holder is not rigid enough, and built-up edge on the cutting tool if the cutting speed is too low. For production runs of aluminum parts, the live tooling parameters can be aggressive and the cycle time is short.

Brass (C360, C260). Brass is also live-tool-friendly, but the high ductility creates long, stringy chips that can wrap around the tool and the workpiece. Chip evacuation is the main concern with brass — through-tool coolant and proper chip-breaking parameters are essential. Brass is common for FRIMA's CNC turning and milling applications in plumbing fittings, electrical connectors, and decorative hardware.

Stainless steel (303, 304, 316). Stainless is the most demanding material for live tooling. The work-hardening tendency means the cutting speed must be high enough to cut below the work-hardened layer (typically 80-120 m/min surface speed), but not so high that the tool wears rapidly. Live tool holder rigidity is critical — chatter from a flexible holder will work-harden the surface and make subsequent passes cut into a harder layer. Coolant is essential to evacuate heat and prevent built-up edge. For stainless parts with milled features, expect cycle times 2-3x longer than the same features in aluminum.

Mild steel and alloy steel (1018, 1045, 4140). These materials mill cleanly with live tooling at moderate speeds (4,000-8,000 RPM) and moderate feed rates. The risk is tool wear on long production runs — a coated carbide end mill (TiN or AlTiN coating) typically lasts 200-500 parts in mild steel before requiring replacement. For high-volume steel parts, the tool change schedule must be planned into the cycle.

Tolerance achievable. Live tooling achieves typical tolerances of ±0.025-0.05mm on milled features (cross-hole diameter, slot width, pocket dimensions). The positional relationship between milled and turned features — the alignment of a cross-hole to a turned diameter — is achievable to ±0.01-0.02mm in a single-setup live tooling operation, because there is no second clamping to introduce error. Surface finish on live-tooled features is typically Ra 1.6-3.2 micron.

For tighter tolerances (±0.005-0.01mm) or finer finishes (Ra 0.4-0.8 micron), secondary finishing operations (grinding, hand-fitting, polishing) are typically required after the live-tooled rough and semi-finish passes. FRIMA's mill-turn cell handles tolerance classes from standard (±0.05mm) through precision (±0.025mm) in a single setup, with grinding reserved for the tightest tolerance requirements.

5Cycle Time Economics: When Live Tooling Saves Time vs Adding a Second Op

The economic case for live tooling is cycle time per part. If live tooling reduces total cycle time compared to a separate turning + milling sequence, the higher setup cost is amortized over enough parts to justify the cell.

Consider a representative part: a brass sensor body with a turned outer diameter (C360 brass, 25mm OD, 40mm length), a 6mm cross-hole drilled at 90° to the OD, a M12 axial thread on the end face, and a 10mm wide slot milled into the cylindrical surface at a specific angular position.

Separate lathe + mill sequence. On a standard lathe, the OD is turned and the M12 thread is cut in approximately 90 seconds. The part is then transferred to a milling machine, where the cross-hole is drilled (15 seconds), the slot is milled (20 seconds), and the part is unloaded (5 seconds). Total cycle time: 90 + 15 + 20 + 5 = 130 seconds per part, plus the transfer handling time (10-15 seconds) and the second-machine setup time (amortized over the production run).

Live tooling on a mill-turn machine. On a mill-turn machine, all four operations are done in one setup. The OD is turned (80 seconds, slightly faster because no tool change for thread), the cross-hole is drilled with live tooling (15 seconds), the slot is milled with live tooling (20 seconds), and the M12 thread is cut (10 seconds). Total cycle time: 80 + 15 + 20 + 10 = 125 seconds per part. No transfer time, no second-machine setup time.

The cycle time saving is only 5 seconds per part on this representative example — but the value compounds over volume. At 1,000 parts per month, the saving is 5,000 seconds = 83 minutes of cell time per month, which is the equivalent of roughly one extra shift of capacity per month. At 10,000 parts per month, the saving is 14 hours per month, which is meaningful.

The bigger economic case is positional accuracy. The cross-hole position relative to the OD groove is controlled to ±0.02mm with live tooling in a single setup. With a separate lathe + mill sequence, the cross-hole position is controlled to ±0.05-0.10mm because of the second-clamping error. If the part specification requires ±0.05mm or tighter alignment between turned and milled features, the live tooling approach is the only way to meet the spec without a secondary alignment operation.

The break-even volume — where the live tooling setup cost is amortized — is typically 200-500 parts for a simple live tooling setup and 50-200 parts for a complex setup with multiple live tool holders and frequent tool changes. Below this volume, a job shop with separate lathe and mill is more cost-effective; above this volume, the live tooling cell delivers lower per-part cost and tighter tolerances.

6Live Tooling vs Dedicated Mill: The Break-Even Point for Production Runs

For a part that is more than 50% milling (a turned hub with extensive milled features, for example), the live tooling approach starts to lose its economic advantage. The milling portion of the cycle takes longer on a lathe than on a dedicated machining center, because the live tool holder RPM is limited (typically 6,000-12,000 RPM on a lathe vs 15,000-30,000 RPM on a dedicated mill) and the live tool holder rigidity is lower than a dedicated spindle. The cycle time per milled feature goes up, and the total cycle time on a mill-turn machine can exceed the total cycle time on a separate lathe + mill sequence.

The break-even point depends on the proportion of milling in the cycle. As a rough rule of thumb:

For a part in the 40-60% milling range, the deciding factor is usually tolerance rather than cycle time. If the milled features must align with turned features to ±0.05mm or tighter, live tooling is the right answer even if the cycle time is slightly longer. If the milled features are on a separate face and do not need to align with the turned geometry, separate machines are the right answer even if the cycle time is slightly shorter.

FRIMA's mill-turn cell is configured for the 0-40% milling range, which is the sweet spot for the majority of turned-and-milled parts in production. For parts with extensive milling requirements, FRIMA's separate CNC milling machines (20 sets) and CNC Swiss machines (20 sets) handle the work in a complementary workflow.

7Case Study: An Automotive Coupling Live-Tooled in FRIMA's Mill-Turn Cell

An automotive Tier 1 supplier approached FRIMA with a coupling part used in a high-performance engine NVH (noise, vibration, harshness) application. The part specification required:

• Outer diameter: 45mm turned from 1045 steel, tolerance ±0.025mm, surface finish Ra 0.8 micron
• Length: 60mm overall, with a turned relief groove at 35mm from one end
• Cross-hole: 8mm diameter, drilled radially at 90° to the OD, position ±0.02mm relative to the relief groove
• End face: M16 thread, depth 20mm
• Slot: 5mm wide, 3mm deep, milled into the cylindrical surface at a specific angular position (15° from the cross-hole)
• Material: 1045 steel, heat-treated to 28-32 HRC after machining
• Production volume: 5,000 parts per month, 12-month program

The challenge was the cross-hole position relative to the relief groove. With separate lathe + mill, the second-clamping error would put the cross-hole position at ±0.05-0.10mm relative to the groove — outside the ±0.02mm specification. The slot position relative to the cross-hole had the same issue.

FRIMA quoted the part on a live-tooled mill-turn machine, with the OD turning, relief groove, cross-hole drilling, slot milling, and M16 thread all in one setup. The live tooling approach achieved ±0.015mm position tolerance between the cross-hole and the relief groove — well within the spec. The cycle time was 145 seconds per part (vs approximately 175 seconds for a separate lathe + mill sequence), and the program ran for 12 months at 5,000 parts per month without a positional quality issue.

The part passed IATF 16949 PPAP on the first submission, with no positional defects in the 30-piece dimensional layout. The customer's previous supplier (a job shop with separate lathe and mill) had a 4% positional defect rate that the customer was looking to eliminate. The switch to FRIMA's mill-turn cell delivered zero positional defects and 17% cycle time reduction.

8Specifying Live Tooling in Your RFQ to FRIMA

For an RFQ to FRIMA that includes live-tooled features, the specification should include the following information to enable an accurate quote and a reliable production schedule.

Drawing with all features marked. Provide a 2D drawing with all turned and milled features clearly dimensioned and toleranced. For 3D geometry, an STP or IGES file is preferred. Mark which features are turned, which are milled (live-tooled), and which require alignment between turned and milled features.

Material specification. Specify the material grade (e.g., 1045 steel, 6061-T6 aluminum, C360 brass, 316 stainless) and any post-machining heat treatment or surface treatment requirements. The material affects the live tooling parameters and the cycle time.

Tolerance class. Specify the tolerance on each feature — turned features (typical ±0.025-0.05mm), milled features (typical ±0.025-0.05mm), and positional tolerances between features (typical ±0.02-0.05mm for live-tooled, ±0.05-0.10mm for separate ops). our manufacturing capability covers standard tolerances (±0.05mm) through precision (±0.025mm) in a single setup.

Production volume. Specify the annual volume or the per-order volume, plus the expected production schedule (single lot, monthly releases, Kanban). The volume drives the cell configuration and the tooling strategy (dedicated tooling for high volume, shared tooling for low volume).

Quality requirements. Specify any industry certifications required (ISO 9001, IATF 16949 for automotive, AS9100 for aerospace, ISO 13485 for medical). FRIMA holds dual ISO 9001 and IATF 16949 certifications. Specify any PPAP, FAI, or first-article inspection requirements, and any ongoing inspection requirements (CMM layout, SPC data, batch traceability).

Surface treatment. Specify any post-machining surface treatment (anodizing, plating, painting, passivation, black oxide) and whether FRIMA should source the treated material or perform the treatment in-house. Surface treatment can affect tolerances (anodizing adds 0.0005-0.001" to aluminum dimensions) and should be accounted for in the machining allowance.

For a new RFQ with live-tooled features, the typical response time from FRIMA is 24-48 hours for a quotation, 7-10 days for sample production (if no tooling is required), and 15-20 days for the first production batch after sample approval. The 40-set mill-turn cell delivers capacity for production volumes up to 50,000 parts per month on live-tooled parts.
