At FRIMA, we focus on precision CNC turning for stainless steel parts, with dedicated lathe cells, alloy-optimized cutting processes and a flexible production system built to serve both rapid prototyping and low-volume serial production. From micro precision pins to large industrial valve stems, we manufacture custom cylindrical components fully in-house at our Ningbo facility, paired with complementary milling, grinding and surface finishing capabilities. This one-stop model eliminates the hassle of coordinating multiple suppliers, ensuring consistent quality and shorter turnaround for every project.
Full-Spectrum Stainless Steel Turning Solutions Under One Roof
We do not limit our service to basic lathe operations. Our stainless steel turning capabilities cover a full range of process options, allowing us to match the right production method to your part’s geometry, tolerance level and volume requirements.
|
Turning Process |
Machining Scope |
Key Precision Advantage |
Ideal Part Scenarios |
|
Standard CNC Lathe Turning |
Ø3mm – Ø250mm diameter, up to 600mm length |
Stable diameter control and uniform surface quality |
General-purpose shafts, bushings, sleeves, threaded fittings and medium-sized cylindrical parts |
|

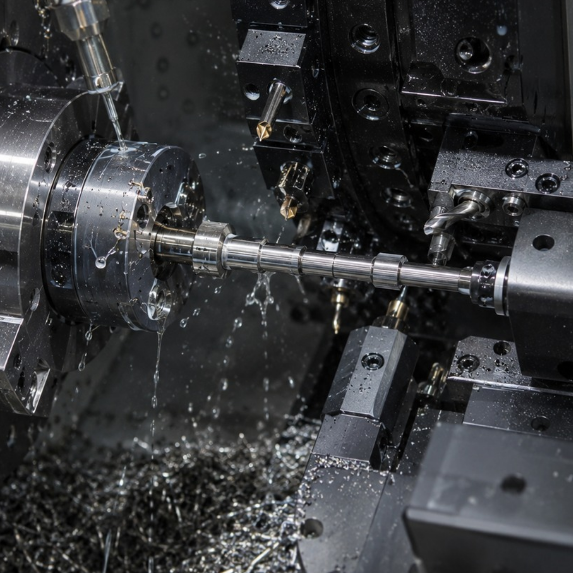

Swiss-Type CNC Turning |
Ø0.5mm – Ø20mm diameter, up to 200mm length |
Ultra-tight dimensional control and excellent repeatability for slender parts |
Micro pins, sensor shafts, medical components, miniature connectors and small-diameter precision parts |
|

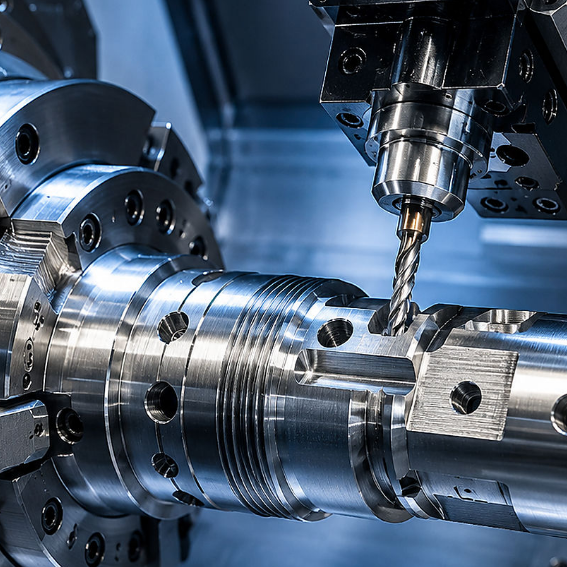

Live-Tool Mill-Turn Machining |
Ø5mm – Ø200mm diameter, up to 400mm length |
Single-setup completion of turning + cross-holes, flats, keyways and slots |
Multi-feature valve spools, complex shafts, mounting studs and parts with side features |
|
Post-Turning Cylindrical Grinding |
Ø3mm – Ø200mm diameter, up to 500mm length |
Superior roundness, cylindricity and ultra-fine surface finish |
Bearing journals, sealing surfaces, hydraulic spools and high-precision mating parts |
All processes are supported by stainless-steel-specific tooling and high-pressure coolant systems, addressing the material’s inherent work-hardening and heat dissipation challenges for consistent batch-to-batch results.
Custom Stainless Steel Turned Parts We Manufacture
We produce fully customized turned components based on your CAD drawings, material specifications and performance requirements. Our precision CNC turning expertise covers a wide range of common and specialty cylindrical parts:
Precision Shafts
Drive shafts, actuator shafts, pump shafts, motor shafts and sensor shafts. Machined with controlled concentricity and runout to ensure smooth rotation and low vibration in corrosive and sanitary operating environments.
Bushings & Sleeves
Wear bushings, guide sleeves, spacer sleeves and bearing liners. Available in a full range of stainless grades for corrosion‑resistant, long‑lasting support in fluid systems, food equipment and industrial machinery.
Pins, Studs & Fasteners
Dowel pins, locating pins, threaded studs, custom fasteners and connection pins. Produced with precise diameter tolerances and clean thread profiles to prevent galling and ensure reliable assembly.
Threaded Components
Nuts, bolts, threaded fittings, threaded sleeves and custom thread forms. We support metric, UN, NPT, BSPP and other thread standards, with precision finishing for smooth engagement in stainless steel assemblies.
Valve & Fluid Control Parts
Valve stems, valve seats, spools, nozzle bodies and manifold connectors. Engineered for leak‑tight performance and long‑term corrosion resistance in chemical, water treatment and hydraulic systems.
Custom Fittings & Connectors
Tube fittings, hose adapters, compression fittings and custom connection components. Designed for fluid and gas systems requiring reliable sealing and durable corrosion performance.
Precision CNC Turning for Stainless Steel Parts
Why Stainless Steel Turning Requires Specialized Expertise (And How FRIMA Address It)
Unlike ordinary carbon steel, stainless steel’s unique material properties introduce distinct machining obstacles that directly impact part quality, tool life and production consistency. Most general workshops underestimate these challenges, resulting in high scrap rates and premature corrosion failure in end use. We have engineered our entire stainless steel turning workflow to counter each issue at the source:
1. Work Hardening & Accelerated Tool Wear
Challenge: Austenitic grades like 304 and 316L harden rapidly under cutting friction, dulling tool edges quickly and causing surface tearing and dimensional drift across production batches.
Our Solution: We maintain a validated parameter library for every stainless grade, using sharp, coated carbide inserts paired with high‑pressure through‑tool coolant. We also program consistent cutting depths that shear cleanly below the hardened surface layer, rather than rubbing across it — extending tool life by 35–45% and ensuring stable dimensions from the first part to the last.
2. Built‑Up Edge (BUE) & Poor Surface Finish
Challenge: The high ductility of stainless steel causes material to adhere to cutting edges, creating built‑up edge that scratches part surfaces, ruins thread profiles and causes sealing failures.
Our Solution: We use polished rake face inserts with optimized chip loads, and direct high‑pressure coolant straight to the cutting zone to prevent material adhesion. For high‑surface‑quality requirements, we add dedicated light finishing passes to deliver uniform, defect‑free surface roughness without smearing.
3. Poor Chip Evacuation & Internal Bore Damage
Challenge: Long, stringy stainless steel chips easily jam tool paths and scratch machined surfaces, especially for deep‑hole and small‑diameter internal turning operations.
Our Solution: We use stainless‑steel‑specific chipbreaker geometries to break chips into short, manageable segments, and equip boring bars with through‑tool coolant to flush chips out of the bore immediately. This eliminates rework caused by chip scratching and maintains consistent bore surface quality.
4. Thin‑Wall & Slender Shaft Deformation
Challenge: Thin‑walled sleeves and long, slender shafts are prone to clamping distortion and cutting‑induced bending, leading to out‑of‑tolerance runout and cylindricity issues.
Our Solution: We design custom soft‑jaw fixtures and steady rests to distribute clamping force evenly and provide radial support throughout the cut. We also use layered roughing / semi‑finishing / finishing pass sequences with low radial cutting force to minimize residual stress and deformation.
5. Hidden Carbon Steel Cross‑Contamination
Challenge: Iron particles from carbon steel production can embed into stainless steel surfaces, causing hidden rust spots and premature corrosion failure that only appears after months of service.
Our Solution: We operate dedicated stainless steel production cells with exclusive workholding, tooling and material storage, physically separated from carbon steel machining areas. All finished parts go through a standard passivation process to restore the protective chromium oxide layer before shipment.
Stainless Steel Grade Selection & Application Guidance
Choosing the right stainless steel grade is critical to balancing performance, machinability and cost. Our engineering team provides complimentary material selection support to match your unique application requirements.
|
Stainless Steel Family |
Common Grades |
Key Properties & Recommended Applications |
|
Austenitic Stainless Steel |
304 / 1.4301, 303, 316L / 1.4404 |
304 for general corrosion resistance in industrial and food equipment; 303 for improved machinability in high-volume fasteners; 316L for superior corrosion resistance in marine, chemical and medical applications. |
|
Martensitic Stainless Steel |
410, 420, 440C |
High strength and hardness after heat treatment. Ideal for valve stems, wear pins and bearing components requiring high mechanical performance. |
|
Precipitation Hardening Stainless |
17-4PH / 1.4542 |
Excellent strength-to-corrosion ratio. Recommended for aerospace, high-strength shafts and structural components operating under moderate corrosion conditions. |
|
Duplex / Super Duplex Steel |
2205 / 1.4462, 2507 |
Outstanding corrosion resistance and high tensile strength. Suitable for chemical processing, offshore and high-pressure fluid system components. |
All raw materials are sourced from accredited mills and supplied with EN 10204 3.1B material certificates, with full batch traceability throughout the production process.
Quality Control for Stainless Steel Turning
Quality is embedded into every stage of our turning process, from incoming material verification to final pre‑shipment inspection. Our ISO 9001 aligned quality system includes dedicated protocols for stainless steel components to ensure dimensional stability, surface integrity and corrosion performance.
Our Layered Inspection Workflow
1. Incoming Material Verification: We validate material certificates, check bar stock diameter and hardness, and confirm chemical composition consistency to avoid grade mix‑ups.
2. First Article Inspection (FAI): The first part from every setup undergoes full dimensional verification before batch production begins, with formal FAIR documentation available upon request.
3. In‑Process Monitoring: Operators perform scheduled dimensional checks at defined intervals, with SPC tracking for critical features. Our quality team conducts independent audits to catch deviations early.
4. Final Inspection: We verify all key dimensions, surface roughness, thread accuracy and visual quality before parts move to packaging. For high‑precision orders, we conduct full CMM inspection in our temperature‑controlled metrology room.
5. Pre‑Shipment Audit: For production batches, we perform AQL Level II sampling to confirm overall quality consistency before shipment.
Core Inspection Equipment
● Coordinate Measuring Machine (CMM) with a resolution of 0.001 mm
● Temperature‑controlled inspection room for high‑precision measurement
● Calibrated micrometers, bore gauges and thread plug/ring gauges
● Contact surface profilometers per ISO 4287
● Roundness and cylindricity measuring instruments
● Rockwell / Vickers hardness testers
When you partner with FRIMA for precision CNC turning for stainless steel parts, you receive fully traceable, inspection‑validated components that match your exact drawing specifications.
Flexible Production: From 1-Piece Prototypes to Low-Volume Production
FRIMA understand that product development and custom equipment projects do not always require large production runs. Our CNC turning for steel parts service is built for flexibility, with no high minimum order requirements to support every stage of your project lifecycle.
● 1‑Piece Prototypes & Engineering Samples: Ideal for design validation, functional testing and fit checks. We machine directly from solid bar stock with fast turnaround, typically 3 – 7 working days. We also support rapid design iterations, so you can refine your part geometry without long lead times.
● Small‑Batch Production (10 – 500 pcs): Suitable for custom machinery, aftermarket replacement parts and pilot production runs. Optimized setups deliver consistent quality at competitive per‑piece pricing, with typical lead times of 10 – 15 working days.
● Low‑Volume Serial Production (500 – 10,000 pcs/year): For ongoing equipment production and recurring component needs. We offer scheduled blanket orders and consignment inventory options to support steady production schedules.
This flexible model means you never have to switch suppliers as your project moves from prototype to production — we support you at every step.
Surface Finishing
FRIMA offer a full range of in‑house managed surface treatments to improve corrosion resistance, appearance, wear performance and sanitary properties of your stainless steel turned parts:
● Passivation (citric / nitric acid): Restores the natural chromium oxide protective layer to maximize corrosion resistance after machining. Standard for all stainless steel parts.
● Electropolishing: Produces an ultra‑smooth, crevice‑free surface ideal for medical, food and pharmaceutical applications, with improved cleanability and corrosion performance.
● Mechanical Polishing / Brushing: Available in mirror, satin and brushed finishes for aesthetic and functional requirements.
● Bead Blasting: Creates a uniform matte finish with improved surface hardness and reduced light reflection.
● Electroless Nickel Plating: Enhances surface hardness and wear resistance for high‑friction applications.
● Black Oxide: Provides a matte black finish with mild corrosion protection and reduced light reflection.
Industries FRIMA Serve
Our stainless steel turned parts serve a wide range of industries, particularly those with stringent requirements for corrosion resistance, precision, and reliability.
1. Automotive Industry
2. Agricultural Industry
3. Medical and Healthcare Industry
4. Food, Beverage, and Packaging Industry
5. Semiconductor and Precision Equipment
6. Chemical Processing and Fluid Control
7. Marine and Offshore Operations
8. Automation and Robotics Industry
Why Choose FRIMA for Your Stainless Steel Turning Projects
One Partner for End-to-End Manufacturing
Beyond precision CNC turning, FRIMA offer complementary milling, grinding, surface treatment and assembly services under one roof. You avoid the quality risks and coordination costs of managing multiple subcontractors, with a single point of contact for your entire project.
Complimentary DFM Optimization
Our engineering team reviews every drawing for manufacturability at no extra cost, identifying tolerance adjustments, design simplifications and material alternatives that typically reduce per-piece costs by 10–25% while improving part performance.
No High Minimum Order Barriers
We support 1-piece prototypes through to low-volume serial production, so you can scale seamlessly from product development to ongoing production without requalifying a new supplier.
Full Traceability & Quality Accountability
Every part is linked to its original material batch, production machine and inspection records. We provide complete material certificates and inspection reports, so you have full visibility into your supply chain.
Fast, Predictable Lead Times
With in-stock common stainless steel grades, optimized production scheduling and direct port access, FRIMA deliver reliable on-time delivery rates and keep your development and production schedules on track.
How Our Quoting & Production Process Works
FRIMA make the custom turning process simple, transparent and predictable. From drawing submission to final delivery, you have clear visibility into every stage.
1. Send us your 2D/3D CAD files along with material requirements, quantity, tolerance specifications and target delivery date.
2. Our engineering team reviews your design for manufacturability, identifies potential optimization opportunities and provides a detailed, itemized quotation within 24 working hours. We also offer material and process recommendations at no extra cost.
3. Once you approve the quote, we schedule production and source raw material from our qualified supplier network. For prototype orders, we often have common stainless steel grades in stock for even faster turnaround.
4. Our skilled machinists produce your parts using the optimal turning process, with built‑in in‑process inspection to ensure quality at every operation.
5. After final inspection and any required surface finishing, we carefully pack your parts and ship via your preferred carrier. All shipments include the relevant inspection and material documentation.
Contact Us Now
Whether you are developing a new product, building custom equipment or sourcing ongoing low-volume components, our precision CNC turning for stainless steel parts delivers the accuracy, flexibility and reliability you need to keep your project on track. Our email is info@frimaparts.com
To get started, please provide:
● 2D + 3D CAD files (STEP, IGES, SolidWorks, DWG)
● Stainless steel grade or application requirements
● Order quantity and delivery timeline
● Tolerance specifications and critical features
● Surface finishing and documentation requirements
